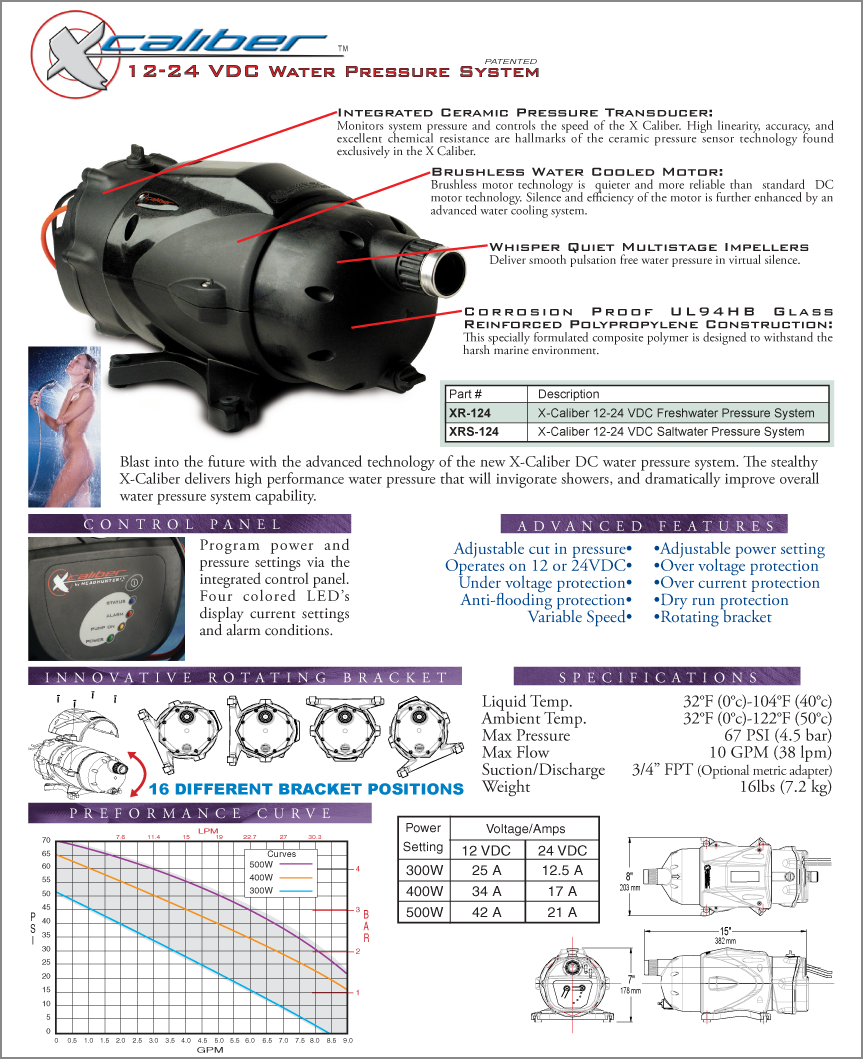

Featured Pump: X-Caliber – 12-24V DC Pressure System
Quiet, reliable, blasting water pressure. Combining advanced DC motor and control technology with a proven self-priming centrifugal pump, the X-caliber surges past the competition with a flood of features.
A built in microprocessor interfaced with a rugged ceramic temperature and pressure sensor provides variable speed operation, prevents dry running damage and ensures complete electrical protection.
Part # Description
XR-124 X-Caliber 12-24 VDC Freshwater Pressure System
XRS-124 X-Caliber 12-24 VDC Saltwater Pressure System
Control Panel:
Program power and pressure settings via the integrated control panel. Four colored LED’s display current settings and alarm conditions.
Advanced Features:
- Adjustable cut in pressure
- Adjustable power setting
- Operates on 12 or 24VDC
- Over voltage protection
- Under voltage protection
- Over current protection
- Anti-flooding protection
- Dry run protection
- Variable Speed
- Rotating bracket
Product Details/Specifications:
- Liquid Temp: 32°F (0°c) – 104°F (40°c)
- Ambient Temp: 32°F (0°c) – 122°F (50°c)
- Max Pressure: 67 PSI (4.5 bar)
- Max Flow: 10 GPM (38 lpm)
- Suction/Discharge: 3/4” FPT (Optional metric adapter)
- Weight: 16lbs (7.2 kg)
- Dimensions: 15”(382mm)L – 8”(203mm)W – 7”(178mm)H
